PE1000

0500SD

Powers Fasteners

Epoxy Injection Adhesive Anchoring System
(click image to enlarge)
Quick Overview

  • Bonding threaded rod and reinforcing bar into hardened concrete and grouted CMU
  • Evaluated for installation and use in dry and water-saturated concrete including water-filled holes
  • Suitable to resist loads in cracked or uncracked co
Interested in this item or want more information?
M-F 7:00am-5:00pm. Closed Weekends.
Phone: 817-545-0121
Email: info@pioneerfasteners.com

Can't find what you want? Give us a call and we can help you find it.
Details

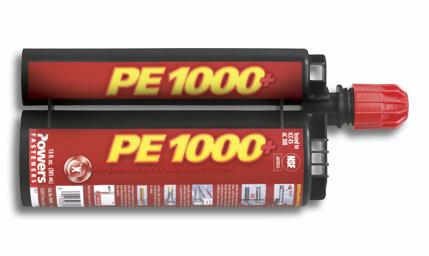

PE1000+    Epoxy Injection Adhesive Anchoring System

Product Description :
The PE1000+ is a two-component, high strength adhesive anchoring system. The systemincludes injection adhesive in plastic cartridges, mixing nozzles, dispensing tools and holecleaning equipment. The PE1000+ is designed for bonding threaded rod and reinforcing barhardware into drilled holes in concrete base and solid masonry materials.

General Applications and Uses :

  • Bonding threaded rod and reinforcing bar into hardened concrete and grouted CMU
  • Evaluated for installation and use in dry and water-saturated concrete including water-filled holes
  • Suitable to resist loads in cracked or uncracked concrete base materials for cases where anchor design theory and criteria applies
  • Qualified for seismic and wind loading (see ESR-2583)
  • Qualified for use in hammer-drill and diamond core drilled holes
  • Can be installed in a wide range of base material temperatures.


  • Features and Benefits :
    + Designed for use with threaded rod and reinforcing bar hardware elements+ Consistent performance in low and high strength concrete (2,500 to 8,500 psi)+ Evaluated and recognized for freeze/thaw performance+ Evaluated and recognized for long term and short term loading (see performance tables for applicable temperature ranges)+ Evaluated and recognized for variable embedments (see installation specifications)+ Cartridge design allows for multiple uses using extra mixing nozzles+ Mixing nozzles proportion adhesive and provide simple delivery method into drilled holes+ Easy dispensing reduces applicator fatique

    Approvals and Listings :
    International Code Council, Evaluation Service (ICC-ES) ESR-2583Code compliant with the 2009 IBC, 2009 IRC, 2006 IBC, 2006 IRC, 2003 IBC,2003 IRC, and 1997 UBCTested in accordance with AC308 for use in structural concrete according to ACI 318 Appendix D(Strength Design) and as amended by provisions of ICC-ES AC308 Annex A, Section 3.3 (www.icc-es.org)Evaluated and qualified by an accredited independent testing laboratory for recognition in cracked anduncracked concrete including seismic and wind loadingCompliant with NSF/ANSI Standard 61 for drinking water system components – health effects;minimum requirements for materials in contact with potable water and water treatmentConforms to requirements of ASTMC 881, Types I, II, IV and V, Grade 3, Classes B & C(also meets type III except for elongation)Department of Transportation listings – see www.powers.com or contact transportation agency

    Guide Specifications :
    CSI Divisions: 03151-Concrete Anchoring, 04081-Masonry Anchorage and 05090-Metal Fastenings.Adhesive anchoring system shall be PE1000+ as supplied by Powers Fasteners, Inc., Brewster, NY.Anchors shall be installed in accordance with published instructions and requirements of theAuthority Having Jurisdiction.


    View Product Specification

    View Submittals
    English

    View Product Profiles
    Transperth Rail Network- Perth, Australia
    Mexico City Subway System (Line No. 12) - Mexico City, Mexico
    Munising Wastewater Treatment Facility, Munising, MI

    View Instruction Card
    English
    Espanol
    Francais

    View Chemical Resistance Charts

    View Approvals
    Spec. Writting Tools
    View Material Safety Data Sheets

    English
    Francais
    Powers Adhesive Calculator
    Additional Information
    Manufacturer: Powers Fasteners
