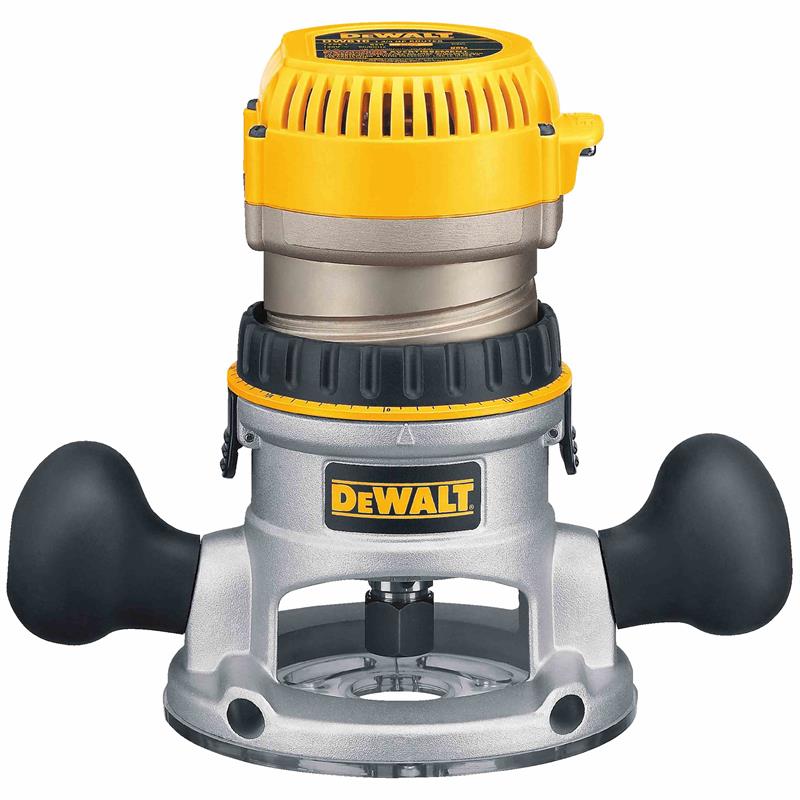

1-3/4 HP (maximum motor HP) Fixed Base Router



The DW616 1-3/4 HP Fixed Base Router has the power to rout smoothly through hardwoods. Provides quick and precise depth adjustments and fast, easy motor pack removal for bit and base changes.
(click image to enlarge)
Quick Overview
  • Amps 11.0Amps
  • HP 1-3/4HP
  • No Load Speed 24,500rpm
  • Collet Diameter 1/2'', 1/4''
  • Plunge Stroke N/A''
  • Depth Stop Micro-fine depth adjustment ring
  • Base Dimension 6''
  • Spindle Lock No
  • Tool Weight 7.1lbs
  • Shipping Weight 10lbs
Interested in this item or want more information?
M-F 7:00am-5:00pm. Closed Weekends.
Phone: 817-545-0121

Can't find what you want? Give us a call and we can help you find it.

Features & Specs


  • 1-3/4 HP (maximum motor HP), 11.0 amp motor provides the power to rout smoothly through the toughest hardwoods
  • Micro-fine depth adjustment ring provides precise depth adjustments in 1/64" increments and adjusts vertically for a constant switch/cordset location
  • Adjustable, tool-free steel motor cam lock makes depth adjustment and base changes quick and solid-locking
  • Quick release motor latches for fast and easy motor pack removal for bit and base changes
  • Detachable cordset offers cordset serviceability and removes the need for a "shorty" cord motor pack
  • Sub-base concentricity gauge included to ensure bit concentricity for best-in-class accuracy
  • Clear, LEXAN sub-base provides enhanced base durability, bit visibility, and accepts standard template guide bushings
  • Rubber overmolded handles and low center of gravity design provide best-in-class comfort, balance, and control
  • Dust-Sealed Switch protects against dust ingestion for longer switch life
  • Heavy-duty, precision machined, die-cast aluminum base and motor housing for durability and low tool weight
  • Nickel plated motor housing for a smooth, long-lasting depth adjustment
  • Right or left switch and cordset location provides the ability to have the switch in your right or left hand
  • Flat top for easy bit and depth changes
  • Self-releasing, long, eight slotted collets for better bit retention and elimination of frozen bits


  • Amps 11.0 Amps
  • Base Dimension 6 in
  • Collet Diameter 1/2", 1/4 in
  • Depth Stop Micro-fine depth adjustment ring
  • Horsepower 1-3/4 HP
  • No Load Speed 24,500 rpm
  • Plunge Stroke N/A in
  • Power Tool Type Corded
  • Spindle Lock No
  • Tool Weight 7.1 lbs


  • DW616M motor pack
  • DW6184 fixed base
  • 1/4" and 1/2" collets
  • Sub-base concentricity gauge
  • 2 wrenches
Additional Information
Manufacturer: DeWalt
