Details

Spike    Pin Anchor

Product Description :

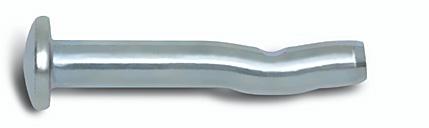

The Spike is a, one-piece, vibration resistant anchor for use in concrete block or stone.Several head styles, including tamperfroof versions, and anchor materials are available.The Spike anchor is formed with an “s” shaped configuration at the working end of theanchor to create an expansion mechanism. Since the anchor is pre-formed, there is nosecondary tightening operation required which greatly reduces the overall cost of an anchorinstallation.

General Applications and Uses :

Tamperproof Applications

Exterior Applications

Cable Trays and Strut

Pipe Hanging

Metal Track Attachments

Concrete Formwork

For roofing applications see the Roofing Spike product information

Features and Benefits :
+ Pre-expanded anchor design allows for easy installation
+ Mushroom and flat head Spike anchors are tamper-proof
+ Forming Spike, which is removable, can be used for temporary installations
+ Pipe and Tie-wire Spike is an easy to install alternative to direct fastening

Approvals and Listings :
Factory Mutual Research Corporation (FM Approvals) – J.I. ON5A1.AH, 3/8” diameter Pipe SpikePipe hanger components for Automatic Sprikler Systems.Tested in accordance with ASTM E488 and AC01 criteria

Guide Specifications :
CSI Divisions: 03151-Concrete Anchoring, 04081-Masonry Anchorage and 05090-Metal Fastenings. Pre-expanded anchors shall be Spike as supplied by Powers Fasteners,Inc., Brewster, NY.

View Product Specification

View Submittals
English

Additional Information

Manufacturer: Anchors Powers DeWalt
